Mobile Centrifuge
Mobile Centrifuge Unit with poly dosing station
Our Decanting Centrifuge with scroll comprises of the rotating bowl, consisting of a feed pipe, a cylindrical section where the separation of the suspension takes place and a conical section where the scroll removes the dewatered sludge, the housing enclosing the rotor, the base frame bearing rotor and housing, and the bowl and scroll drive systems.
Applications
- Dewatering and thickening of sludge from municipal and industrial waste water,
- Post treatment of biomass
- Sludge dewatering for sand & aggregates, mining, waste recycling and industrial sands
Technical Information
Typical example
- 45 kw main drive motor
- 15kw hydraulic secondary drive for increased torque
- Inside bowl diameter 544 mm
- Machine length 3660 mm
- Machine width 1632 mm
- Machine height 1324 mm
- Weight of the machine without quartz sand filling 44 kN
- Weight of the machine 51 kN
- Bowl length 2359 mm
- Max. bowl speed 3300 rpm
- Acceleration 3291 x g
- Ratio of bowl length to diameter 4.3

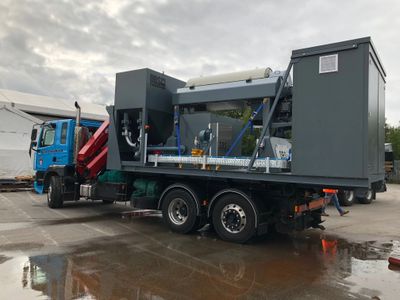

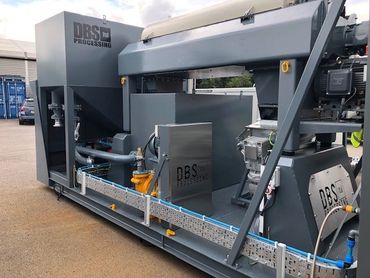

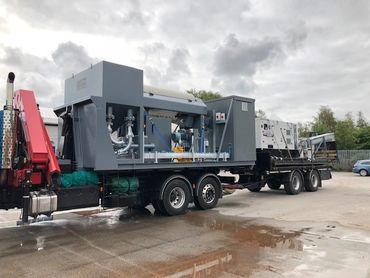

Mobile Centrifuge Unit
