Ultra Sep 325

Rag and grit removal from sludge

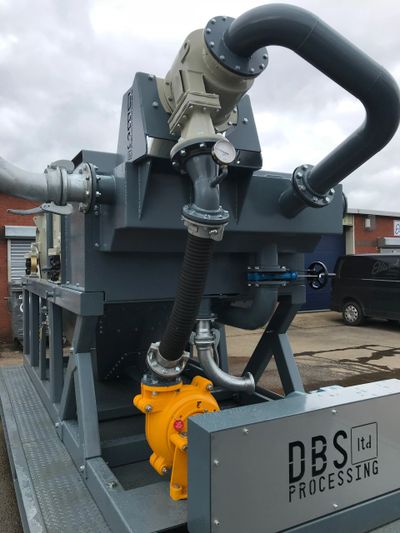

Ultra Sep 325 Dual Separation Mobile Screening Unit

The Ultra Sep 325 From DBS Processing Ltd makes the separation of Rag and grit from various liquids and solids Simple. The standalone unit is designed to be incredibly easy to transport and used on a daily basis. By using our vast knowledge and expertise in various industries, we have designed and produced the very best in mobile screening machinery. With its "plug and play" design along with the ability to separate liquids and solids ranging in size from 40mm to 63 microns the Ultra Sep 325 is truly versatile. With the development of this machine DBS Processing Ltd have ensured that productivity is optimised allowing operational costs and on site working time to be kept to a minimum. Whether simply dewatering sand, screening problematic rag/digestate or washing products with the use of the integrated spray bar system, the multifunctional Ultra Sep 325 can give you a fast inexpensive temporary or permanent solution to your processing needs.

Applications

Rag removal from sludge

Grit removal from sludge

Temporary import screen

Pre screen prior to centrifuge

Post digester screen

Screen for river dredging

Digester cleaning

Lagoon cleaning

Mobile Dual sand plant

Tanker waste screen

wastewater screen

Wet waste management

Technical Information

  • Maximum Capacity 60,000 l/h
  • Water Requirements 0-8,000 l/h
  • Power Requirements 40kw
  • Fine screening Area - 3.2m x 0.6m
  • Coarse screening Area - 3.2m x 0.6m
  • Transport Details - Hook lift RORO
  • Dry Weight - 8t
  • Inlet pipe - 4 Inch Bauer coupling
  • Outlet pipe - 6 Inch Bauer coupling
  • Screening Media - Polyurethane

Click here to book a free trial on your site

Contact a member of our team for more information
